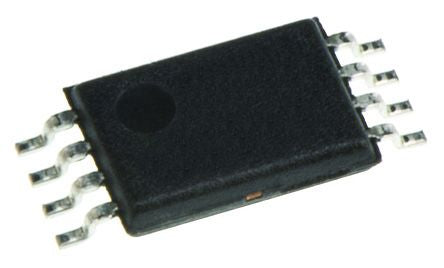

, Bus Switch [SN74CB3Q3306APW]; 145-6134
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | CB3Q |
| Configuration | 1 x 1:1 |
| Number of Elements per Chip | 2 |
| Number of Inputs per Chip | 2 |
| Number of Outputs per Chip | 2 |
| Maximum On Resistance | 5Ω |
| Maximum Quiescent Current | 700µA |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 8 |
| Maximum High Level Output Current | -64mA |
| Maximum Low Level Output Current | 64mA |
| Maximum Propagation Delay Time @ Maximum CL | 0.2 ns @ 3.3 V |
| Dimensions | 3 x 4.4 x 1.15mm |
| Length | 3mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +85 °C |
| Width | 4.4mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 2.3 V |
| Minimum Operating Temperature | -40 °C |
| Height | 1.15mm |
