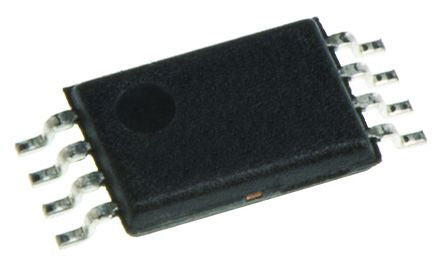

, Bus Switch [SN74CBTD3306PWR]; 145-5777
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | CBT |
| Configuration | 1 x 1:1 |
| Number of Elements per Chip | 2 |
| Number of Inputs per Chip | 2 |
| Number of Outputs per Chip | 2 |
| Maximum On Resistance | 35Ω |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 8 |
| Maximum High Level Output Current | -128mA |
| Maximum Low Level Output Current | 128mA |
| Maximum Propagation Delay Time @ Maximum CL | 0.25 ns @ 5 V |
| Dimensions | 3 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 5.5 V |
| Length | 3mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
