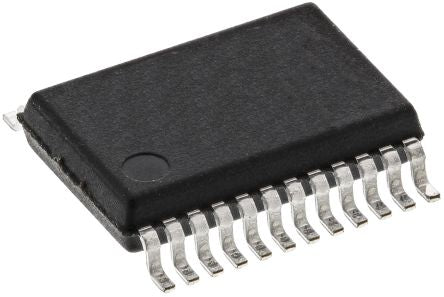

Texas Instruments SN74CBTD3384DBQR, Bus Switch, 5 x 1:1, 24-Pin SSOP [SN74CBTD3384DBQR]; 162-6396
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74CBT |
| Configuration | 5 x 1:1 |
| Number of Elements per Chip | 2 |
| Number of Inputs per Chip | 10 |
| Number of Outputs per Chip | 10 |
| Maximum On Resistance | 50Ω |
| Maximum Quiescent Current | 1500µA |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 24 |
| Maximum High Level Output Current | -128mA |
| Maximum Low Level Output Current | 128mA |
| Maximum Propagation Delay Time @ Maximum CL | 0.25ns |
| Dimensions | 8.75 x 4 x 1.5mm |
| Length | 8.75mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Bus Width | 10bit |
| Minimum Operating Supply Voltage | 4.5 V |
| Minimum Operating Temperature | -40 °C |
| Height | 1.5mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Width | 4mm |
