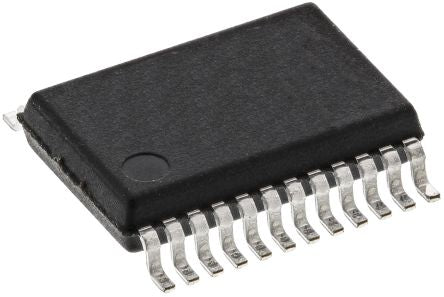

Texas Instruments SN74CBTD3861DBR, Bus Switch, 10 x 1:1, 24-Pin SSOP [SN74CBTD3861DBR]; 162-7367
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | CBT |
| Configuration | 10 x 1:1 |
| Number of Elements per Chip | 1 |
| Number of Inputs per Chip | 10 |
| Number of Outputs per Chip | 10 |
| Maximum On Resistance | 20Ω |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 24 |
| Maximum High Level Output Current | -128mA |
| Maximum Low Level Output Current | 128mA |
| Maximum Propagation Delay Time @ Maximum CL | 0.35 ns @ 5.5 V |
| Dimensions | 8.2 x 5.3 x 1.95mm |
| Maximum Operating Temperature | +85 °C |
| Width | 5.3mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Length | 8.2mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Height | 1.95mm |
