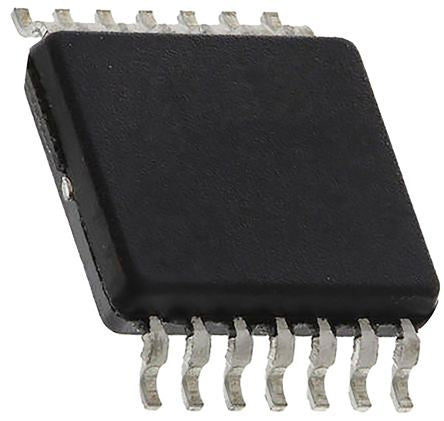

Texas Instruments SN74HC132DBR, Quad 2-Input NAND Schmitt Trigger Logic Gate, 2 → 6 V, 14-Pin SSOP [SN74HC132DBR]; 732-0840
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | Yes |
| Package Type | SSOP |
| Pin Count | 14 |
| Logic Family | HC |
| Input Type | Schmitt Trigger |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 156ns |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Dimensions | 6.5 x 5.6 x 1.95mm |
| Length | 6.5mm |
| Height | 1.95mm |
| Maximum Operating Temperature | +85 °C |
| Width | 5.6mm |
| Minimum Operating Temperature | -40 °C |
| Output Type | LSTTL |
| Propagation Delay Test Condition | 50pF |
