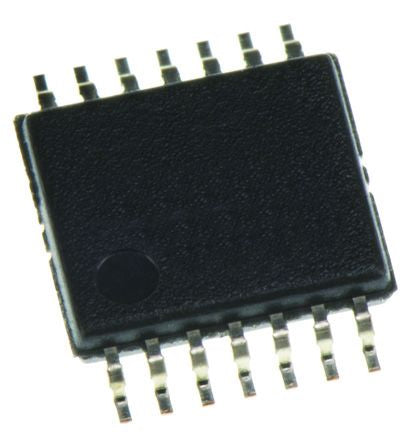

Texas Instruments SN74HCT32NSR, Quad 2-Input OR Logic Gate, 14-Pin SOP [SN74HCT32NSR]; 145-1270
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | OR |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOP |
| Pin Count | 14 |
| Logic Family | HCT |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ Maximum CL | 22 ns @ 5.5 V, 24 ns @ 4.5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 4mA |
| Propagation Delay Test Condition | 50pF |
| Dimensions | 10.3 x 5.3 x 1.95mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 5.3mm |
| Height | 1.95mm |
| Length | 10.3mm |
