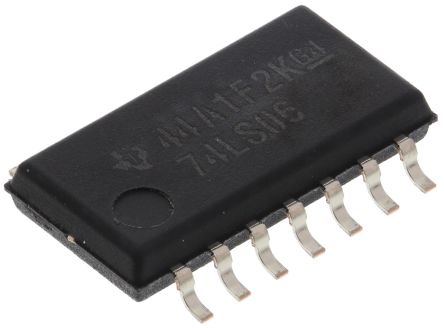

Texas Instruments SN74LS06NSR, Hex, Open Collector Inverter, 14-Pin SOIC [SN74LS06NSR]; 162-6684
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverting Buffer |
| Output Type | Open Collector |
| Number of Elements per Chip | 6 |
| Schmitt Trigger Input | No |
| Maximum Propagation Delay Time @ Maximum CL | 20 ns @ 15 pF |
| Maximum High Level Output Current | 0.25mA |
| Maximum Low Level Output Current | 40mA |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | LS |
| Dimensions | 10.5 x 5.6 x 1.85mm |
| Height | 1.85mm |
| Propagation Delay Test Condition | 15pF |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Minimum Operating Supply Voltage | 4.75 V |
| Width | 5.6mm |
| Maximum Operating Supply Voltage | 5.25 V |
| Length | 10.5mm |
