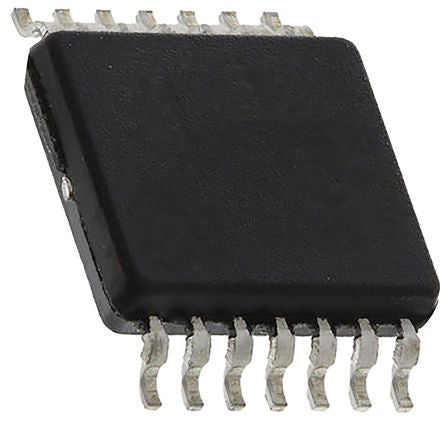

Texas Instruments SN74LVC08ADBR, Quad 2-Input AND Logic Gate, 14-Pin SSOP [SN74LVC08ADBR]; 162-7446
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SSOP |
| Pin Count | 14 |
| Logic Family | LVC |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ Maximum CL | 3.9 ns @ 3.3 V, 4.6 ns @ 2.7 V |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 24mA |
| Width | 5.3mm |
| Dimensions | 6.2 x 5.3 x 1.95mm |
| Length | 6.2mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Height | 1.95mm |
| Maximum Operating Temperature | +125 °C |
