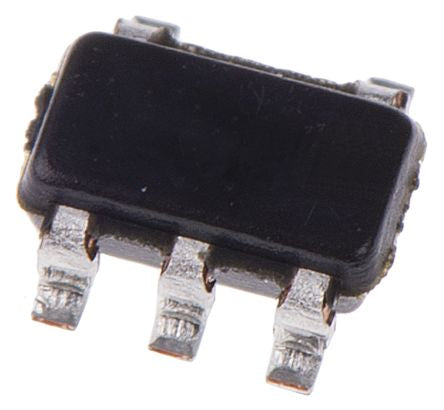

Texas Instruments SN74LVC1G00DBVR, 2-Input NAND Logic Gate, 5-Pin SOT-23 [SN74LVC1G00DBVR]; 162-6695
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Logic Family | LVC |
| Input Type | CMOS, TTL |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 4.3 ns @ 5 V |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Dimensions | 3.05 x 1.75 x 1.3mm |
| Propagation Delay Test Condition | 50pF |
| Height | 1.3mm |
| Length | 3.05mm |
| Maximum Operating Temperature | +125 °C |
| Width | 1.75mm |
| Minimum Operating Temperature | -40 °C |
| Output Type | CMOS |
