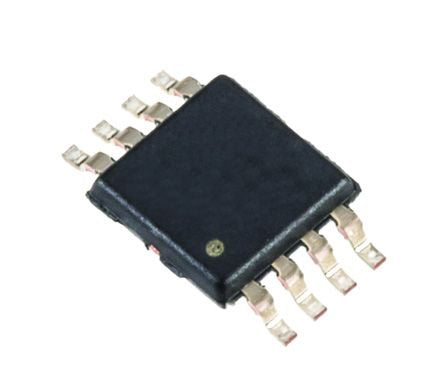

Texas Instruments SN74LVC2G132DCUT, Dual 2-Input NAND Schmitt Trigger Logic Gate, 1.65 → 5.5 V, 8-Pin VSSOP [SN74LVC2G132DCUT]; 662-8922
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | Yes |
| Package Type | VSSOP |
| Pin Count | 8 |
| Logic Family | LVC |
| Input Type | Schmitt Trigger |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 5 ns @ 5 V, 6 ns @ 3.3 V |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Maximum Operating Temperature | +85 °C |
| Length | 2.3mm |
| Dimensions | 2.3 x 2 x 0.85mm |
| Width | 2mm |
| Height | 0.85mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
