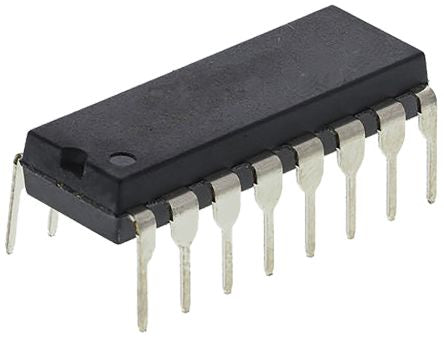

Texas Instruments TL594IN, Dual PWM Voltage Mode Controller, 200 mA, 300 kHz 16-Pin, PDIP Boost, Flyback, Push-Pull, [TL594IN]; 145-1203
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 2 |
| Control Method | Voltage |
| Topology | Boost, Flyback, Forward, Push-Pull |
| Rise Time | 200ns |
| Fall Time | 45ns |
| Maximum Switching Frequency | 300 kHz |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Maximum Duty Cycle | 0.45 |
| Output Current | 200 mA |
| Output Voltage | 40 V |
| Typical Operating Supply Voltage | 7 → 40 V |
| Width | 6.35mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Length | 19.3mm |
| Height | 4.57mm |
