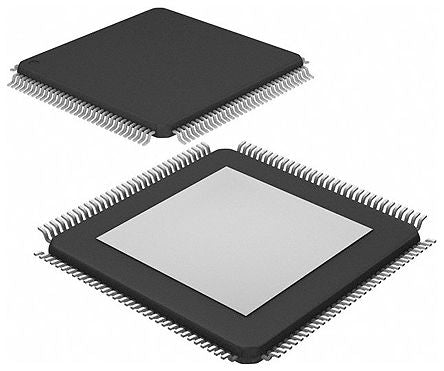

Texas Instruments TM4C1294NCPDTI3, 32bit ARM Cortex M4F Microcontroller, 120MHz, 1.024 MB Flash, 128-Pin TQFP [TM4C1294NCPDTI3]; 162-9868
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ARM9 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 128 |
| Device Core | ARM Cortex M4F |
| Data Bus Width | 32bit |
| Program Memory Size | 1.024 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 256 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 20 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of ADC Units | 2 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Length | 14.05mm |
| Timers | 8 x 16 bit, 8 x 32 bit |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 14.05 x 14.05 x 1.15mm |
| ADC Resolution | 12bit |
| PWM Resolution | 16bit |
| Pulse Width Modulation | 1 x 16 bit |
| Instruction Set Architecture | Harvard |
| ADCs | 2 (20 x 12 bit) |
| Number of Timers | 8 |
| Maximum Number of Ethernet Channels | 1 |
| Data Rate | 480Mbps |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.15mm |
| Width | 14.05mm |
