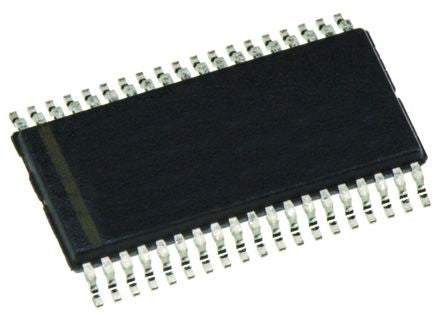

Texas Instruments TMS320F28020DAT, 32bit C28x Microcontroller, 40MHz, 32 kB Flash, 38-Pin TSSOP [TMS320F28020DAT]; 162-8392
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | Piccolo |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 38 |
| Device Core | C28x |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 6 kB |
| Number of PWM Units | 1 |
| ADC Channels | 7 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Number of UART Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (8 Channel) |
| Dimensions | 12.6 x 6.2 x 1.05mm |
| Number of ADC Units | 1 |
| Length | 12.6mm |
| Timers | 3 x 32 bit |
| Width | 6.2mm |
| PWM Channels | 8 |
| Height | 1.05mm |
| ADCs | 1 (7 x 12 bit) |
| Timer Resolution | 32bit |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | MCU |
| ADC Resolution | 12bit |
