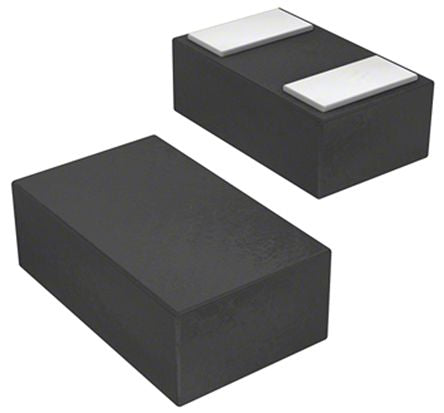

Texas Instruments TPD1E05U06DPYT, Uni-Directional TVS Diode, 2-Pin X2SON [TPD1E05U06DPYT]; 825-5315
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 14V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | X2SON |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 2.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Reverse Leakage Current | 10nA |
| Length | 1.1mm |
| Height | 0.4mm |
| Width | 0.7mm |
| Test Current | 1mA |
| Dimensions | 1.1 x 0.7 x 0.4mm |
