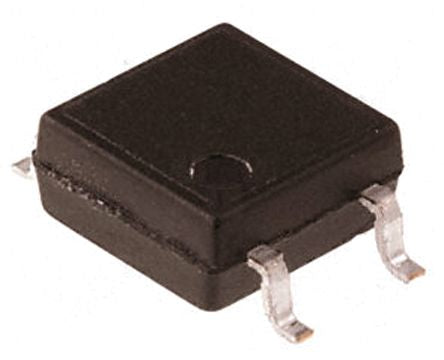

Texas Instruments TPD2E001DZDR, Dual Uni-Directional ESD Protection Array, 4-Pin SOP [TPD2E001DZDR]; 162-7867
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Maximum Clamping Voltage | 100V |
| Minimum Breakdown Voltage | 11V |
| Mounting Type | Surface Mount |
| Package Type | SOP |
| Pin Count | 4 |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 1.4mm |
| Height | 1.07mm |
| Test Current | 10mA |
| Dimensions | 3.04 x 1.4 x 1.07mm |
| Maximum Reverse Leakage Current | 1nA |
| Length | 3.04mm |
