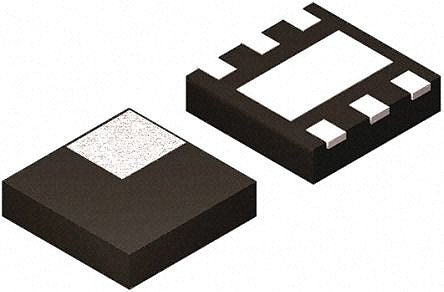

Texas Instruments TPD4E001DRSR, Quad Uni-Directional TVS Diode Array, 100W, 6-Pin SON [TPD4E001DRSR]; 162-8768
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Maximum Clamping Voltage | 105.5V |
| Minimum Breakdown Voltage | 11V |
| Mounting Type | Surface Mount |
| Package Type | SON |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 5.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 3.15mm |
| Dimensions | 3.15 x 3.15 x 0.75mm |
| Maximum Reverse Leakage Current | 1nA |
| Height | 0.75mm |
| Width | 3.15mm |
| Test Current | 10mA |
