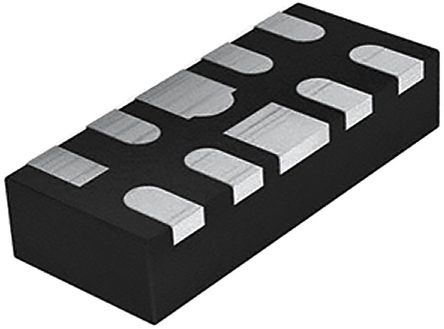

Texas Instruments TPD4E02B04DQAR, Quad Bi-Directional ESD Protection Array, 17W, 10-Pin USON [TPD4E02B04DQAR]; 133-0731
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Quad |
| Maximum Clamping Voltage | 8.8V |
| Minimum Breakdown Voltage | 5.5V |
| Mounting Type | Surface Mount |
| Package Type | USON |
| Maximum Reverse Stand-off Voltage | 3.6V |
| Pin Count | 10 |
| Peak Pulse Power Dissipation | 17W |
| Maximum Peak Pulse Current | 2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2.6 x 1.1 x 0.5mm |
| Surge Current Rating | 2A |
| Maximum Reverse Leakage Current | 10nA |
| Test Current | 5A |
| Capacitance | 0.33pF |
| Length | 2.6mm |
| Height | 0.5mm |
| Width | 1.1mm |
