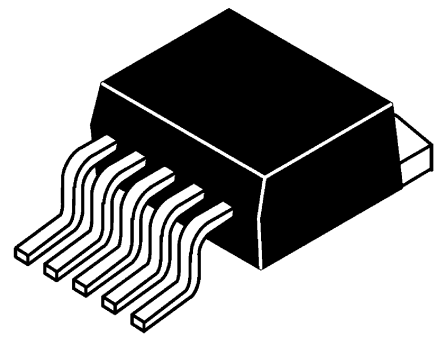

Texas Instruments TPS7A4501KTTR, LDO Regulator, 1.5A Adjustable, 1.21 → 20 V, ±1% 5-Pin D2PAK [TPS7A4501KTTR]; 709-9155
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.21 → 20 V |
| Output Type | Adjustable |
| Package Type | D2PAK (TO-263) |
| Maximum Output Current | 1.5A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.9 V |
| Maximum Input Voltage | 20 V |
| Pin Count | 5 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 1mA |
| Accuracy | ±1% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 4.58mm |
| Length | 10.16mm |
| Line Regulation | 3 mV |
| Width | 8.42mm |
| Load Regulation | 8 mV |
| Dimensions | 10.16 x 8.42 x 4.58mm |
| Reference Voltage | 1.21V |
| Enable | Yes |
