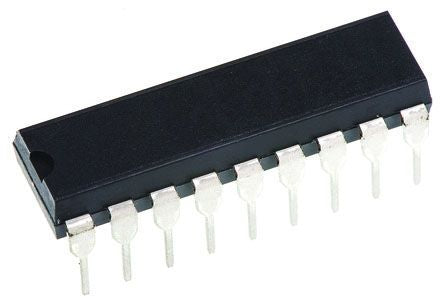

Texas Instruments UC2526AN, Dual PWM Voltage Mode Controller, 100 mA, 550 kHz 18-Pin, PDIP [UC2526AN]; 661-4995
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 2 |
| Control Method | Voltage |
| Topology | Boost, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull |
| Rise Time | 300ns |
| Fall Time | 100ns |
| Maximum Switching Frequency | 550 kHz |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 18 |
| Maximum Duty Cycle | 0.49 |
| Output Current | 100 mA |
| Synchronous Pin | Yes |
| Length | 22.48mm |
| Dimensions | 22.48 x 6.35 x 4.57mm |
| Width | 6.35mm |
| Typical Operating Supply Voltage | 4.5 → 35 V |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 4.57mm |
