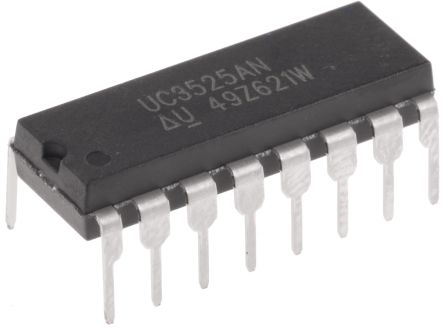

Texas Instruments UC3525AN, Dual PWM Voltage Mode Controller, 400 mA, 400 kHz 16-Pin, PDIP [UC3525AN]; 121-8954
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 2 |
| Control Method | Voltage |
| Topology | Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull |
| Rise Time | 100ns |
| Fall Time | 50ns |
| Maximum Switching Frequency | 400 kHz |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Maximum Duty Cycle | 0.49 |
| Output Current | 400 mA |
| On/Off Pin | Yes |
| Synchronous Pin | Yes |
| Minimum Operating Temperature | 0 °C |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Typical Operating Supply Voltage | 4.5 to 35 V |
| Width | 6.35mm |
| Length | 19.3mm |
| Height | 4.57mm |
| Maximum Operating Temperature | +70 °C |
