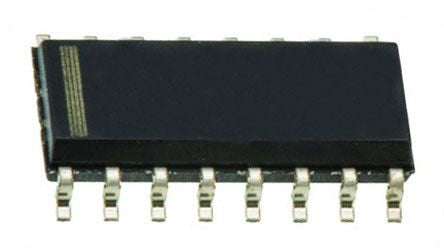

Texas Instruments UCC3806DW, PWM Current Mode Controller, Dual 500 mA, 52 kHz, 8 → 14.5 V, 16-Pin SOIC [UCC3806DW]; 661-5850
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 2 |
| Control Method | Current |
| Topology | Boost, Buck, Flyback, Forward |
| Rise Time | 35ns |
| Fall Time | 35ns |
| Maximum Duty Cycle | 0.5 |
| Maximum Switching Frequency | 52 kHz |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Output Current | 500 mA |
| On/Off Pin | Yes |
| Synchronous Pin | Yes |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Length | 10.28mm |
| Dimensions | 10.28 x 7.52 x 2.35mm |
| Height | 2.35mm |
| Width | 7.52mm |
| Typical Operating Supply Voltage | 8 → 14.5 V |
