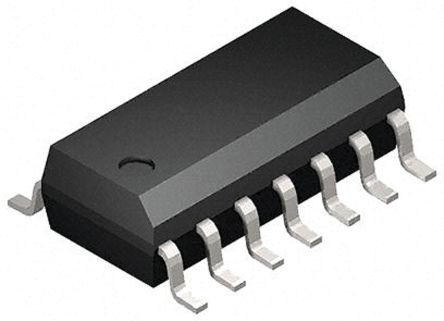

Toshiba 74HC132D, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin SOIC [74HC132D]; 171-3542
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | Yes |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | 74HC |
| Input Type | CMOS, Schmitt Trigger |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 140 ns @ 50 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Dimensions | 8.95 x 3.9 x 1.38mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3.9mm |
| Height | 1.38mm |
| Maximum Operating Temperature | +85 °C |
| Output Type | CMOS, LSTTL |
| Length | 8.95mm |
| Propagation Delay Test Condition | 50pF |
