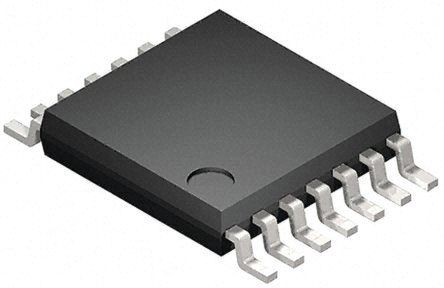

Toshiba 74VHCT08AFT, Quad 2-Input AND Logic Gate, 14-Pin TSSOP [74VHCT08AFT]; 171-3528
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Package Type | TSSOP |
| Pin Count | 14 |
| Logic Family | 74VHCT |
| Input Type | CMOS, TTL |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns @ 50 pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 8mA |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Output Type | CMOS, TTL |
| Dimensions | 5 x 4.4 x 1mm |
| Minimum Operating Temperature | -40 °C |
| Width | 4.4mm |
| Height | 1mm |
| Automotive Standard | AEC-Q100 |
| Length | 5mm |
