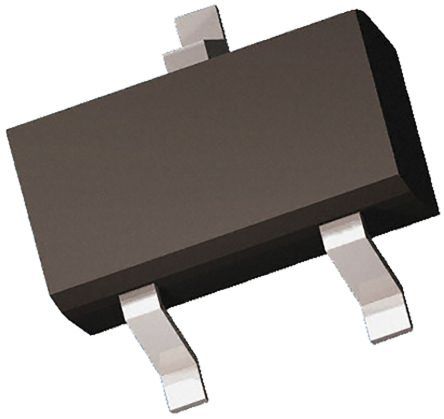

SSM3K56FS,LF(T N-Channel MOSFET, 800 mA, 20 V, 3-Pin 2-2H1S Toshiba [SSM3K56FS,LF(T]; 182-5545
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 800 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | 2-2H1S |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 235 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 150 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±8 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Length | 1.6mm |
| Height | 0.65mm |
| Width | 0.8mm |
| Typical Gate Charge @ Vgs | 1 nC @ 4.5 V |
| Maximum Operating Temperature | +150 °C |
