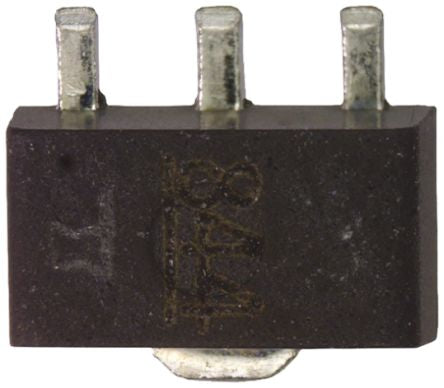

Toshiba TA48L05F(F), LDO Regulator, 150mA, 5 V, ±3% 4-Pin, HSOP [TA48L05F(F)]; 260-316
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 V |
| Output Type | Fixed |
| Package Type | HSOP |
| Maximum Output Current | 150mA |
| Mounting Type | Surface Mount |
| Maximum Input Voltage | 16 V |
| Pin Count | 4 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 0.4mA |
| Accuracy | ±3% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Power Rating | 0.5W |
| Width | 2.5mm |
| Length | 4.6mm |
| Height | 1.6mm |
| Dimensions | 4.6 x 2.5 x 1.6mm |
| Line Regulation | 20 mV |
| Load Regulation | 45 mV |
