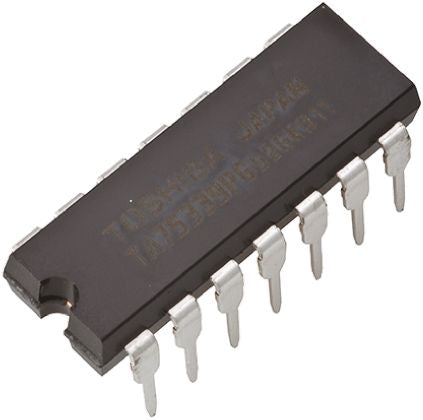

Toshiba TC4584BP(N,F), Hex Schmitt Trigger Inverter, 3 → 18 V, 14-Pin PDIP [TC4584BP(N,F)]; 580-874
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverter |
| Input Type | Schmitt Trigger |
| Number of Elements per Chip | 6 |
| Schmitt Trigger Input | Yes |
| Maximum Propagation Delay Time @ Maximum CL | 120 ns @ 15 V, 160 ns @ 10 V, 340 ns @ 5 V |
| Maximum High Level Output Current | -4mA |
| Maximum Low Level Output Current | 4mA |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Logic Family | 4000 |
| Dimensions | 19.25 x 6.4 x 3.5mm |
| Height | 3.5mm |
| Width | 6.4mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 3 V |
| Length | 19.25mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 18 V |
