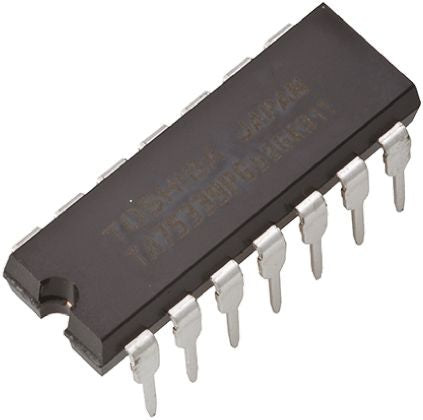

Toshiba TC74HC126AP(F) Quad Buffer & Line Driver, 3-State, 2 → 6 V, 14-Pin PDIP [TC74HC126AP(F)]; 539-9484
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | HC |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 4 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Maximum High Level Output Current | -7.8mA |
| Maximum Low Level Output Current | 7.8mA |
| Maximum Propagation Delay Time @ Maximum CL | 130 ns @ 2 V |
| Dimensions | 19.25 x 6.4 x 3.5mm |
| Height | 3.5mm |
| Propagation Delay Test Condition | 150pF |
| Maximum Operating Supply Voltage | 6 V |
| Width | 6.4mm |
| Length | 19.25mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
