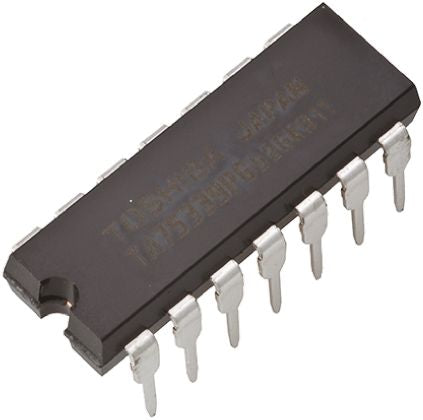

Toshiba TC74HC20AP(F), Dual 4-Input NAND Logic Gate, 2 → 6 V, 14-Pin PDIP [TC74HC20AP(F)]; 539-9333
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Number of Inputs per Gate | 4 |
| Schmitt Trigger Input | No |
| Package Type | PDIP |
| Pin Count | 14 |
| Logic Family | HC |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Length | 19.25mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Dimensions | 19.25 x 6.4 x 3.5mm |
| Height | 3.5mm |
| Minimum Operating Temperature | -40 °C |
| Width | 6.4mm |
