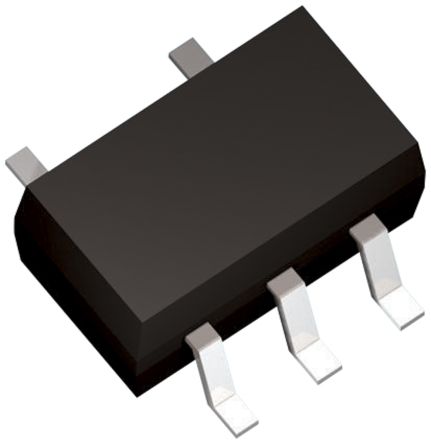

Toshiba TC7SH09F, 2-Input AND Logic Gate, 5-Pin SOT-25 [TC7SH09F]; 171-3012
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Package Type | SOT-25 |
| Pin Count | 5 |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Propagation Delay Time @ Maximum CL | 14 ns @ 50 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 8mA |
| Length | 2.9mm |
| Automotive Standard | AEC-Q100 |
| Propagation Delay Test Condition | 50pF |
| Output Type | CMOS |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2.9 x 1.6 x 1.1mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1.1mm |
| Width | 1.6mm |
