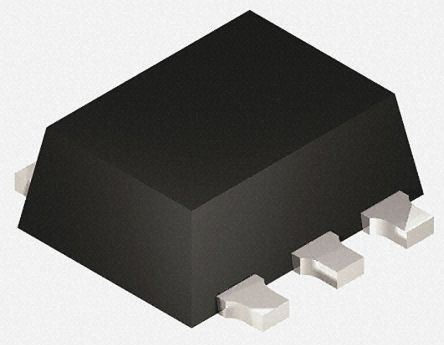

Toshiba TC7SZ32FE, 2-Input OR Logic Gate, 5-Pin SOT-553 [TC7SZ32FE]; 171-3031
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | OR |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Package Type | SOT-553 |
| Pin Count | 5 |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 11 ns @ 15 pF |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Propagation Delay Test Condition | 15pF |
| Automotive Standard | AEC-Q100 |
| Output Type | CMOS |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 1.6 x 1.2 x 0.55mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.2mm |
| Length | 1.6mm |
| Height | 0.55mm |
