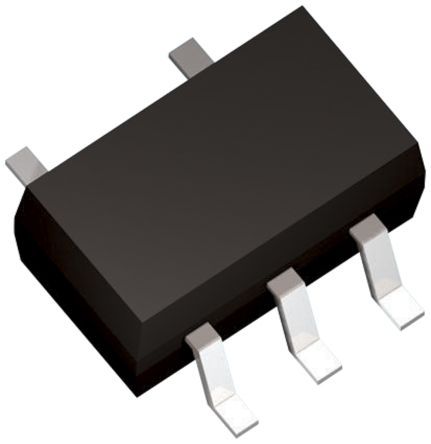

Toshiba TC7SZ86FU, 2-Input XOR Logic Gate, 5-Pin SOT-353 [TC7SZ86FU]; 171-3037
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | XOR |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Package Type | SOT-353 |
| Pin Count | 5 |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 13.5 ns @ 15 pF |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Dimensions | 2 x 1.25 x 0.9mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.25mm |
| Height | 0.9mm |
| Propagation Delay Test Condition | 15pF |
| Length | 2mm |
| Output Type | CMOS |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +125 °C |
