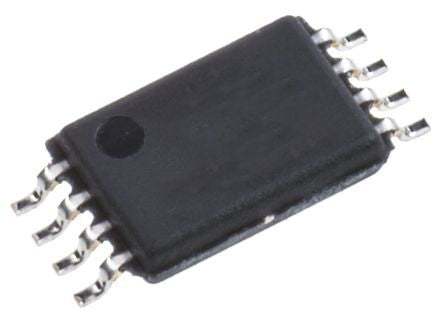

Toshiba TC7WH02FU, Dual 2-Input NOR Logic Gate, 8-Pin SOT-505 [TC7WH02FU]; 171-3094
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NOR |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 2 |
| Package Type | SOT-505 |
| Pin Count | 8 |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ Maximum CL | 13 ns @ 50 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 8mA |
| Minimum Operating Temperature | -40 °C |
| Height | 1.05mm |
| Width | 2.8mm |
| Dimensions | 2.9 x 2.8 x 1.05mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 2.9mm |
| Output Type | CMOS |
