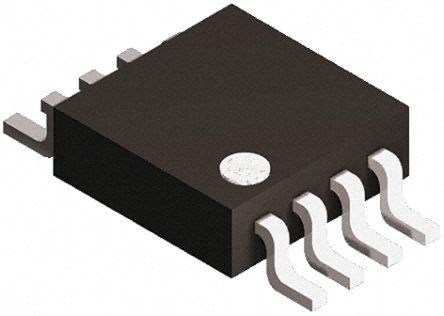

Toshiba TC7WH125FK, Dual Bus Buffer, 14.5 ns @ 50 pF 8mA, 8-Pin SOT-765 [TC7WH125FK]; 171-3043
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Element Inputs | 1 |
| Number of Elements per Chip | 2 |
| Maximum Propagation Delay Time @ Maximum CL | 14.5 ns @ 50 pF |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Mounting Type | Surface Mount |
| Package Type | SOT-765 |
| Pin Count | 8 |
| Dimensions | 2 x 2.3 x 0.7mm |
| Height | 0.7mm |
| Length | 2mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
| Width | 2.3mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
| Automotive Standard | AEC-Q100 |
| Propagation Delay Test Condition | 50pF |
