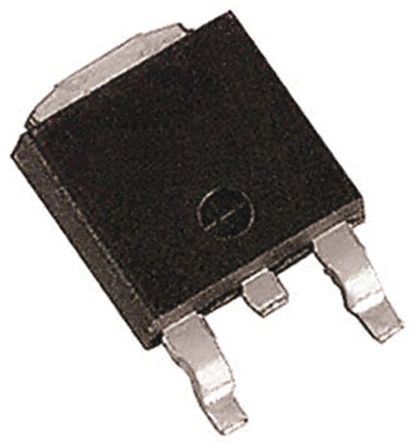

TJ8S06M3L P-Channel MOSFET, 8 A, 60 V, 3-Pin DPAK Toshiba [TJ8S06M3L]; 171-2492
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.333333333333333 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | DPAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 130 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 27 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +10 V |
| Number of Elements per Chip | 1 |
| Width | 7mm |
| Height | 2.3mm |
| Forward Diode Voltage | 1.2V |
| Length | 6.5mm |
| Maximum Operating Temperature | +175 °C |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 19 nC @ 10 V |
