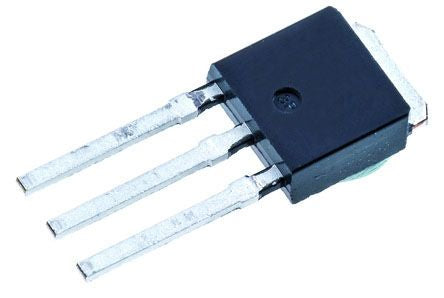

TK11Q65W,S1Q(S N-Channel MOSFET, 11.1 A, 650 V DTMOSIV, 3-Pin IPAK Toshiba [TK11Q65W,S1Q(S]; 125-0534
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 11.1 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 440 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 100 W |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Series | DTMOSIV |
| Width | 2.3mm |
| Height | 7.12mm |
| Length | 6.65mm |
| Forward Diode Voltage | 1.7V |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 25 nC @ 10 V |
| Transistor Material | Si |
