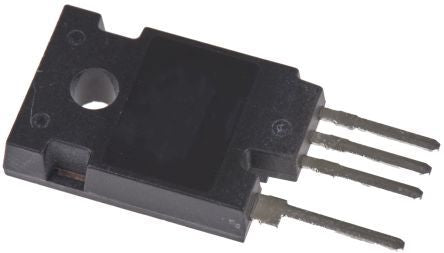

TK31Z60X,S1F(O N-Channel MOSFET, 30.8 A, 600 V, 4-Pin TO-247 Toshiba [TK31Z60X,S1F(O]; 185-6182
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 30.8 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 880 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 230 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 5mm |
| Height | 20.95mm |
| Typical Gate Charge @ Vgs | 65 nC @ 10 V |
| Length | 15.94mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.7V |
