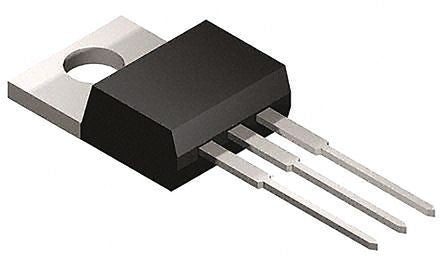

TK32E12N1,S1X(S N-Channel MOSFET, 60 A, 120 V TK, 3-Pin TO-220 Toshiba [TK32E12N1,S1X(S]; 168-7971
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 60 A |
| Maximum Drain Source Voltage | 120 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 13.8 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 98 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Series | TK |
| Width | 4.45mm |
| Height | 15.1mm |
| Transistor Material | Si |
| Length | 10.16mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 34 nC @ 10 V |
