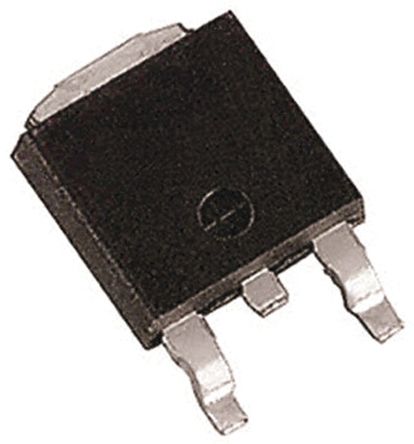

TK55S10N1 N-Channel MOSFET, 55 A, 100 V, 3-Pin DPAK Toshiba [TK55S10N1]; 171-2425
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 55 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | DPAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 6.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 157 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 49 nC @ 10 V |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +175 °C |
| Automotive Standard | AEC-Q101 |
| Length | 6.5mm |
| Width | 7mm |
| Height | 2.3mm |
