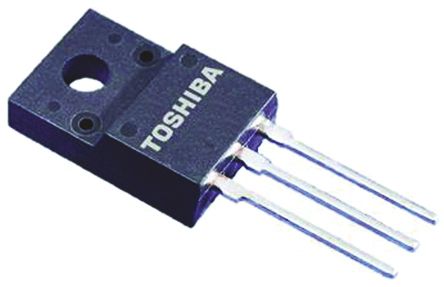

TK6A60D,S5Q(J N-Channel MOSFET, 6 A, 600 V TK, 3-Pin SC-67 Toshiba [TK6A60D,S5Q(J]; 896-2423
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.25 |
| Maximum Drain Source Voltage | 600 V |
| Package Type | SC-67 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.25 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 40 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 4.5mm |
| Height | 15mm |
| Length | 10mm |
| Maximum Operating Temperature | +150 °C |
| Series | TK |
| Typical Gate Charge @ Vgs | 16 nC @ 10 V |
