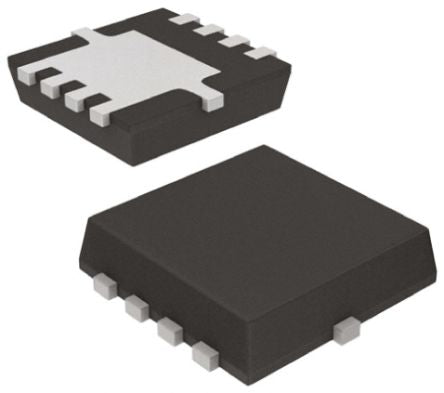

TPCA8052-H N-Channel MOSFET, 20 A, 40 V TPC, 8-Pin SOP Advanced Toshiba [TPCA8052-H]; 796-5134
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 20 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | SOP Advanced |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 13.1 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.3V |
| Maximum Power Dissipation | 30 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 0.95mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 25 nC @ 10 V |
| Length | 5mm |
| Maximum Operating Temperature | +150 °C |
| Series | TPC |
| Width | 5mm |
