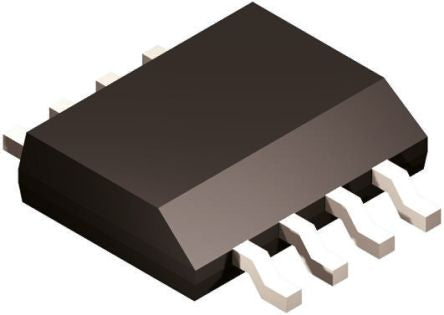

TPCA8057-H,LQ(J N-Channel MOSFET, 42 A, 30 V, 8-Pin SOIC Toshiba [TPCA8057-H,LQ(J]; 756-3823
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 42 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.3V |
| Maximum Power Dissipation | 57 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 61 nC @ 10 V |
| Transistor Material | Si |
| Length | 5mm |
| Height | 0.95mm |
| Width | 5mm |
| Maximum Operating Temperature | +150 °C |
