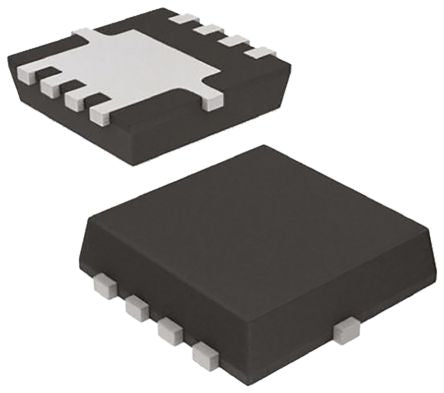

TPN11006NL,LQ(S N-Channel MOSFET, 37 A, 60 V U-MOSVIII-H, 8-Pin TSON Toshiba [TPN11006NL,LQ(S]; 133-2812
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 37 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TSON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 17 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 30 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 3.1mm |
| Height | 0.85mm |
| Typical Gate Charge @ Vgs | 23 nC @ 10 V |
| Length | 3.1mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Series | U-MOSVIII-H |
| Transistor Material | Si |
