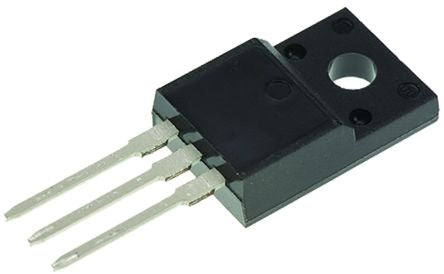

Toshiba TTC3710B,S4X(S NPN Transistor, 12 A, 80 V, 3-Pin TO-220SIS [TTC3710B,S4X(S]; 144-5244
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0 |
| Maximum Collector Emitter Voltage | 80 V |
| Package Type | TO-220SIS |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 30 W @ 25 °C |
| Minimum DC Current Gain | 120 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 80 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 80 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 10 x 4.5 x 15mm |
| Width | 4.5mm |
| Height | 15mm |
| Maximum Operating Temperature | +150 °C |
| Maximum Base Emitter Saturation Voltage | 1.2 V |
| Maximum Collector Emitter Saturation Voltage | 0.4 V |
| Transistor Material | Si |
| Length | 10mm |
