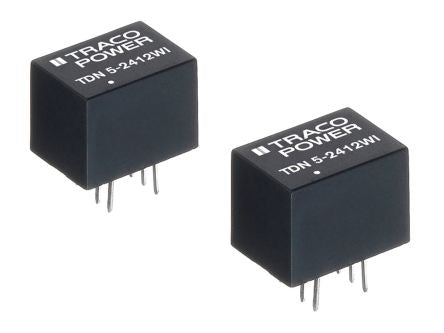

TRACOPOWER TND 5WI 5W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out 12V dc [TDN 5-2412WI]; 161-9887
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Output Voltage Adjustment Range | ±1% |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 5W |
| Output Current | 420mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.83 |
| Package | DIP |
| Load Regulation | 0.01 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +75°C |
| Depth | 10.2mm |
| Width | 9.1mm |
| Standards Met | EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH, RoHS Compliant, UL 60950-1 |
| Series | TND 5WI |
| Length | 13.2mm |
