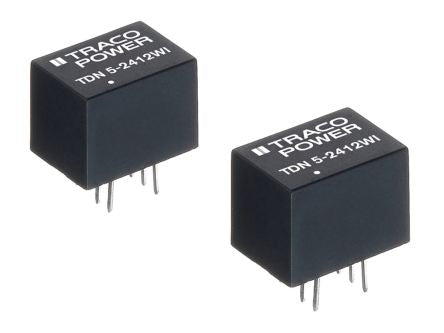

TRACOPOWER TND 5WI 5W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out ±5V dc [TDN 5-4821WI]; 899-8346
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±5V dc |
| Output Voltage Adjustment Range | ±4.95 V dc, ±5.05 V dc |
| Input Voltage Range | 18 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 5W |
| Output Current | ±500mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.8 |
| Package | DIP |
| Minimum Temperature | -40°C |
| Load Regulation | 0.01 |
| Maximum Temperature | +75°C |
| Depth | 10.2mm |
| Width | 9.1mm |
| Length | 13.2mm |
| Series | TND 5WI |
| Standards Met | EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH, RoHS Compliant, UL 60950-1 |
