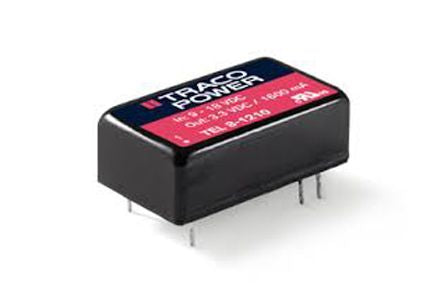

TRACOPOWER TEL 8 8W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 3.3V dc [TEL 8-1210]; 918-9130
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 8W |
| Output Current | 1.6A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.78 |
| Package | DIP 16 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.01 |
| Maximum Temperature | +80°C |
| Series | TEL 8 |
| Length | 23.8mm |
| Standards Met | ANSI/UL No:60950-1, CAN, CSA C22.2 No:60950-1-07, EN 55022 Class A, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH |
| Depth | 8mm |
| Width | 13.7mm |
