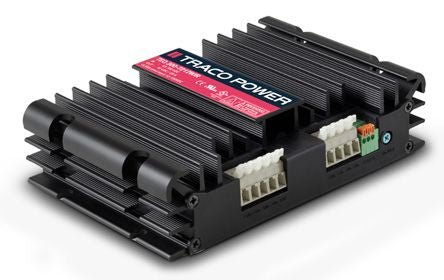

TRACOPOWER TEQ 300WIR 300W Isolated DC-DC Converter Chassis Mount, Voltage in 18 → 75 V dc, Voltage out 12V dc [TEQ 300-4812WIR]; 135-3718
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 18 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 300W |
| Output Current | 25A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Railway Approved | Yes |
| Load Regulation | 0.005 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +80°C |
| Depth | 38.6mm |
| Length | 152.4mm |
| Standards Met | EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 |
| Series | TEQ 300WIR |
| Width | 101.6mm |
