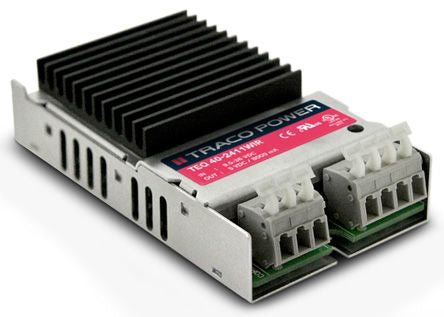

TRACOPOWER TEQ 40WIR 40W Isolated DC-DC Converter Chassis Mount, Voltage in 9.5 → 36 V dc, Voltage out 24V dc [TEQ 40-2415WIR]; 135-3709
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 9.5 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 40W |
| Output Current | 1.67A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Railway Approved | Yes |
| Minimum Temperature | -40°C |
| Load Regulation | 0.01 |
| Maximum Temperature | +83 °C, +92 °C |
| Series | TEQ 40WIR |
| Length | 103mm |
| Standards Met | EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1 |
| Width | 57.2mm |
| Depth | 26.1mm |
