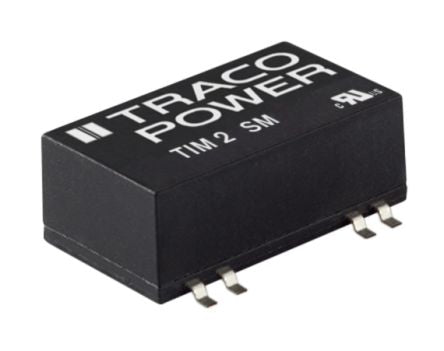

TRACOPOWER TIM 2 2W Isolated DC-DC Converter Surface Mount, Voltage in 4.5 → 12 V dc, Voltage out 15V dc Medical [TIM 2-0913SM]; 152-6565
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 4.5 → 12 V dc |
| Input Voltage Nominal | 9 V dc |
| Isolation Voltage | 5kV ac |
| Power Rating | 2W |
| Output Current | 134mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Medical Approved | Yes |
| Efficiency | 0.82 |
| Package | SMD 16 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.01 |
| Maximum Temperature | +105°C |
| Length | 24.3mm |
| Width | 14.4mm |
| Series | TIM 2 |
| Depth | 10.5mm |
| Standards Met | AAMI/ANSI ES 60601-1, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN 60601-1, MIL-STD-810F |
