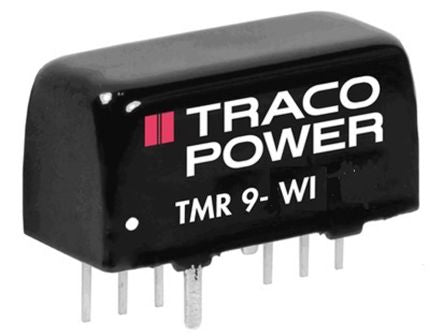

TRACOPOWER TMR 9 WI Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±12V dc [TMR 9-2422WI]; 161-6593
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Output Voltage Adjustment Range | ±11.88 V dc, ±12.12 V dc |
| Power Rating | 9W |
| Input Voltage Range | 9 → 36 V dc |
| Output Current | ±375mA |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.88 |
| Package | SIP 8 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.01 |
| Maximum Temperature | +85°C |
| Width | 9.6mm |
| Standards Met | CULus Listed, IEC/EN 60950-1, UL 60950-1 |
| Length | 21.8mm |
| Depth | 11.2mm |
| Series | TMR 9 WI |
